Mashiinka Shiididda: Qeexidda, Habka, Noocyada iyo Tilmaamaha

Grinding machines are used for making clean cuts and to achieve fine surface finish on metals. These machines are used in manufacturing industries commonly especially automotive and aerospace where the surface finish is very important. If you are searching the article related to the grinding machines, you are at the right place because in this article process, types and specifications of a grinding machine are discussed.

Fig 1: Grind machine

What is Grind Machining?

Grinding machine is a tool which is used to remove excessive material from the surface and provides the smooth finish to metal. This process starts with an abrasive wheel that is used to cut your workpiece when are in contact. Moreover, you can get lights and any desired shape as your application demands.

Key Features of Grind Machining

Grinding machine comes with many useful features but the most important are discussed here:

• Shiidida Gawaarida Naafada
• Dresser mechanism
• Feed rate and speed
• Automation iyo xakamaynta
• Codsiga qaboojinta
• Precision and surface finish
• Different types of grinding

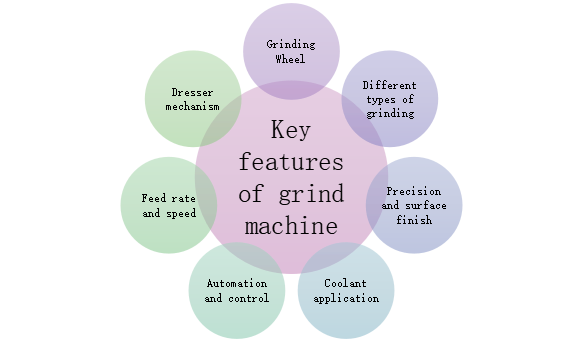

Fig 2: Key features

How Does Grinding Work?

The following guidance will let you know the working principle for this process:

Basic Grinding Principles

These principles are based on several steps that are mentioned below:

• Grinding wheels are different for different materials that’s why first you need to select appropriate wheel. Then adjust the feed and speed rate and mount your workpiece.
• During working, keep using a coolant to control the heat and maintain the structural integrity.

Key Factors Affecting the Grinding Process

The following charts presenting those factors which can affect your grinding process. Therefore, it is necessary to be alert for effective operations:

• Shiidida Gawaarida Naafada
• Dresser mechanism
• Feed rate and speed
• Automation iyo xakamaynta
• Codsiga qaboojinta
• Precision and surface finish
• Different types of grinding

Fig 3: Factors

Common Grinding Machines Used

These are the grinding machines which are commonly used in different industries. These are few of them:

• Belt grinder
• Bench grinder
• Furimaha cylindrical
• Furimaha sare ee dusha sare
• Flexible grinder
• Jig grinder
• Pedestal grinder

Advantages and Disadvantages of Grinding

This section addresses the significant advantages and disadvantages of using grinding machines.

Benefits of Grinding in Precision Manufacturing

• It will give your workpiece high-quality precision as well as dimensional accuracy.
• It provides a smooth surface finish.
• Parameters of the machine are adjustable according to your needs.
• Complex shapes can be produced through grinding.

Drawbacks and Limitations of Grinding

• Kharash badan
• Thermal issues
• Buuq xad dhaaf ah

When to Choose Grinding vs. Other Machining Processes

It all depends on the type of the material and the application. But the general criteria are if the material removal rate (MRR) is low, this machine is more favorable. If the workpiece is small and requires a smooth and precise surface finish, use a grinding machine over other machines.

Grinding Uses

Major grinding uses are mentioned below:

• It is used to make small clean cuts in complex workpieces.
• Grinding machines are significant in the aerospace and medical equipment industries.
• This machine is used to make prototypes as well as small products.

Types of Grind Machining Processes

In the following section, the major types of processes performed by grinding machines are discussed:

Shiidi Dhulka

 In this function, the abrasive wheel remains in contact to the workpiece. The running speed usually lies between 28-33 m/s and MRR is 1 in³/s are the important technical features of this type.

Shilinka Silindrical

Cylindrical parts which require tight tolerance are machined in cylindrical grinding. In this type of grinding, running speed is 25 to 33m/s and MRR is 1 in³/s.

Shiididda Dhexda La'aan

In this machine, the work blade performs only one function is to support the workpiece while grinding. It is usually used for cylindrical parts due to its centerless geometry. It has 23-30 m/s speed while keeping the 1 in³/s. MMR value.

Shiida Gudaha

As the name suggests it is used for internal parts of the components and samples can be grinded by its utility. Some common examples include internal bores and tubes. This machine provides a running speed between 33 to 48 m/s and an MRR of 0.5-1 in³/s.

Creep-feed Grinding

This grinding machine provides help in making complex in minimum time. It’s this property make it useful for aerospace industry i.e. high strength alloys. It provides the typical running speed is 0.10 m/s.

Shiidi Profile

If you need high precision, use profile grinding machine, it is said by several operators. This machine provides 20-25m/s running speed and MRR of 1 in³ for every interval of 30s.

666

What Materials Can Be Used in the Grinding Process?

Grinding machines can be used for many materials but materials include steel alloys, Aluminum and Al alloys, Titanium etc. The ceramic materials are difficult to machine with grinding process but ultimately it depends on the application.

Grinding Technical

Some important griding technical details you should know are given below:

Tilmaamaha Shayga Shiidaa

The table below gives you a brief technical specification required for the grinding wheel:

Table 1: Specifications

Abrasive Materials in Grinding Wheels

Following are the grinding materials you will see mostly in grinding wheels:

• Qoryaha Aluminium
• Kaaraynta Kalluunka
• Diamond
• Cubic boron nitride
• White aluminum oxide

Speed, Feed, and Depth of Cut in Grinding

Speed:Speed means the speed of wheel’s rotation. It is calculated in RPM (Rotation per minute).

Heerka Quudinta: It means the rate of the movement of the grinding wheel into the workpiece and is measured in mm/min as well as ipm.

Qoto dheer ee jarista:

Key Considerations for Grinding Tool Steels

If you are working with grinding tool steels, you must do those things that can create serious issues for you. These things include:

1. Right grinding wheel according to the workpiece materials.
2. Selecting the right coolant to control the heat produced by cutting.
3. Use appropriate average grain size.
4. Use optimum parameters i.e. speed and feed rate

What's the Difference Between Milling and Grinding?

The milling process is used for single or multiple cutting tools. The MRR is higher in this operation, but the surface finish is lower.

If we talk about grinding process, only single wheel is used for functioning. The material removal rate is although lower than milling but the surface finish is greater than milling process.
